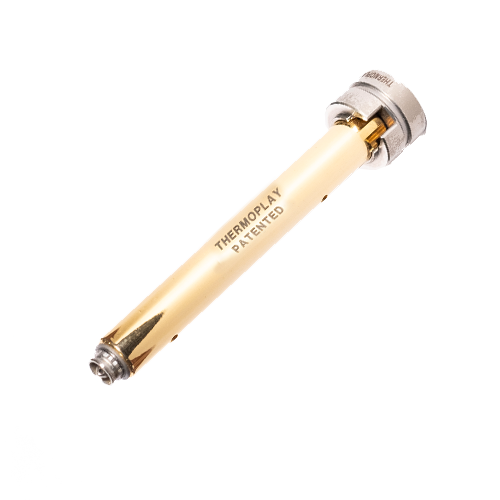

TF Series

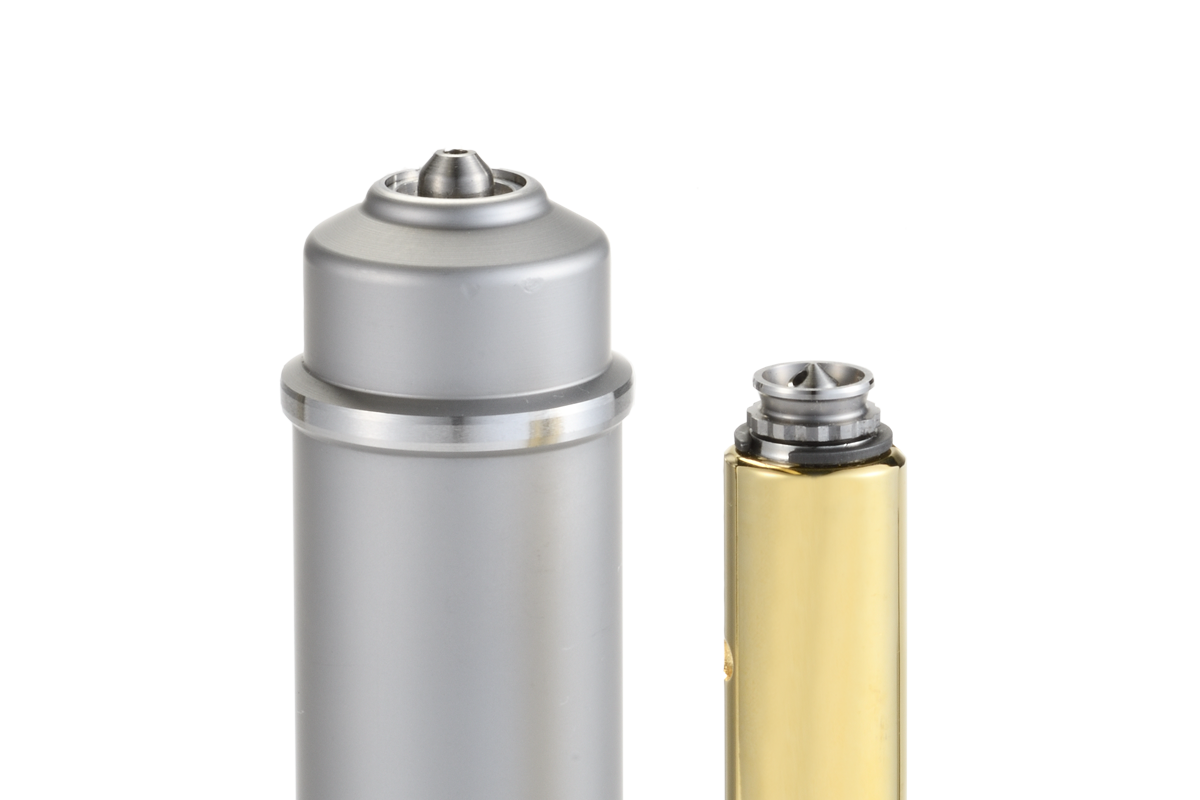

Hot Runner Systems

 hermoplay hot runner nozzles are engineered to deliver precision, efficiency, and durability in every application.
Designed for the needs of modern injection molding, they combine advanced technology with easy maintenance to maximize production performance.


Download Brochure



Sealing (1)
1
2
3
4
5
6
7
8
9
1. Cylindrical Valve Gate

Superior gate quality and perfect positioning for maximum performance

2. Insulating Ring

Provides thermal insulation, ensures precise nozzle centering, and offers a reliable sealing function.

3. Nozzle Heater Band

Ensures uniform heating of the nozzle for consistent melt flow and improved part quality.

4. Replaceable Valve Pin Bushing

Integrated into the nozzle to prevent bending of pin during thermal expansion of manifold.

5. Manifold Heater

Tubular heating elements embedded in heat transfer cement to ensure long life and uniform temperature distribution

6. Leakproofed Manifold

Ensures reliable, temperature-independent sealing with balanced melt flow and no stagnation, hardened block for long durability

7. Insulation Plate

Reduces thermal radiation

8. Valve Pin

Installation/removal possible without dismantling the mold.

9. Pneumatic

Cleanroom-compatible tandem cylinder, small unit size with high closing force.

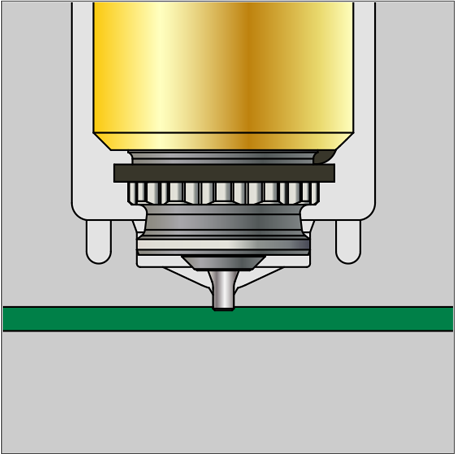

  • Precentered Cylindrical Valve Gate



    During the closing movement, the valve pin is first precentered by an angled guide area and then positioned perfectly in the gate orifice by means of a cylindrical guide. Nozzle and valve pin are designed to provide maximum performance and extreme durability.

     Screenshot 2025-09-29 105451
    • Superior gate quality
    • Large gate cross section
    • Minimal pressure drop
    • Low shear rates
    • Extreme durability wear and maintenance
    • Defined opening and closing of the gate orifice
    • Processing of demanding materials with narrow processing windows
    • Short cycle times
    • Individual heating control
    • Clean room compatible

Our Products

Filter

Nozzle Type

Sliding Nozzle
Sliding Nozzle

Gate

Valve Gate
Thermal Gate
On Sprue

Name

Flow Bore (mm)

Cut out (mm)

Sealing (mm)

Support Ring (mm)

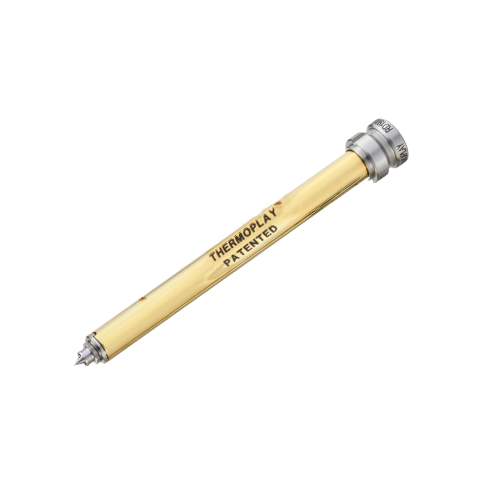

TF 12

Thermal Gate Nozzles

  • Valve Gate Injection
Image Name Description Product
Catalog		 3D Data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

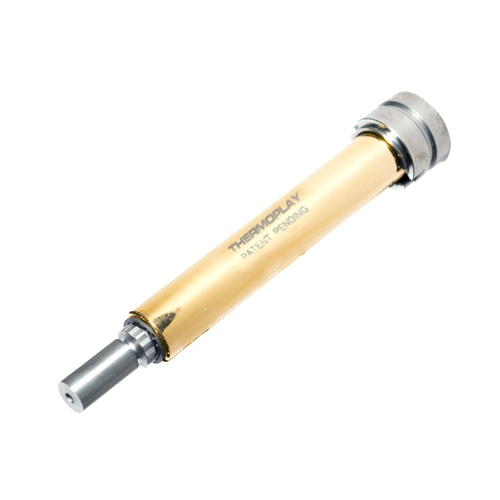

TF 12-3 TF 12-3

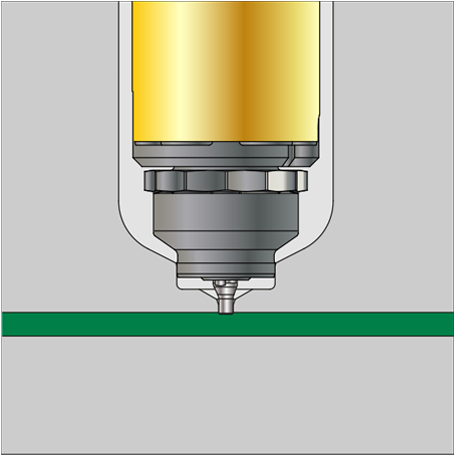

Nozzle with shut-off valve for optimum gate aesthetics, not for abrasive materials.
 TF 12-3 TF 12-3 4 12 16.5 5.5
Legend
Maenner-drawing-Valve-Gate-Nozzle

TF 32

Thermal Gate Nozzles

  • Direct Injection
Image Name Description Product
Catalog		 3D Data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

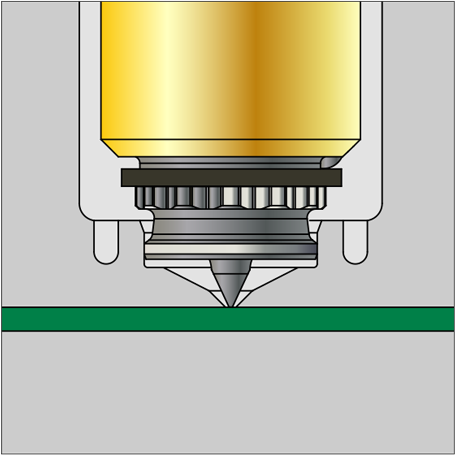

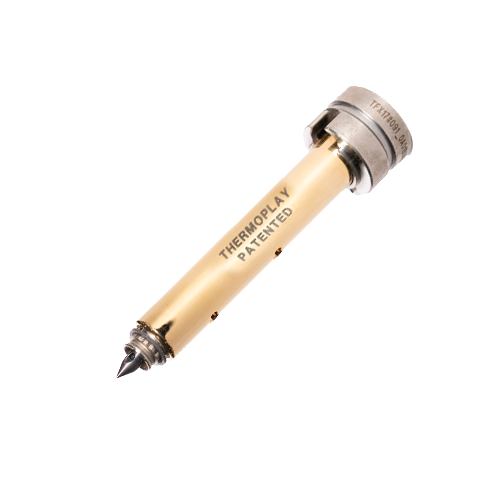

TF 32-1 TF 32-1
Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF 32-1 TF 32-1 10 32 42 16

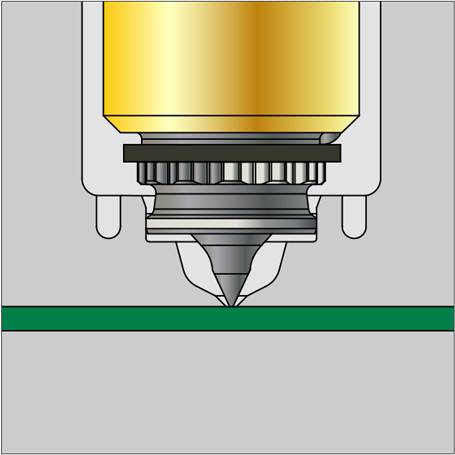

TF 32-1B30 TF 32-1B30
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF 32-1B30 TF 32-1B30 10 32 42 16

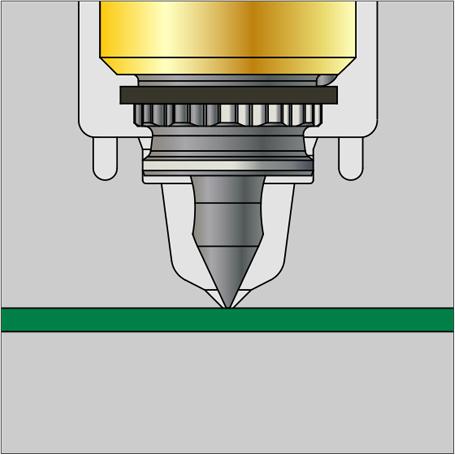

TF 32-1B50 TF 32-1B50
Nozzle for good gate appearance, extended tip for limited space, suited for thin fast-cycle parts. Handles abrasive fillers up to 20%, not for quick color changes.
 TF 32-1B50 TF 32-1B50 10 32 42 16

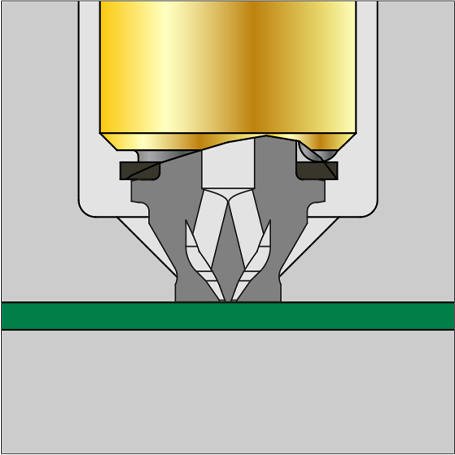

TF 32-1D TF 32-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF 32-1D TF 32-1D 10 32 42 8.5

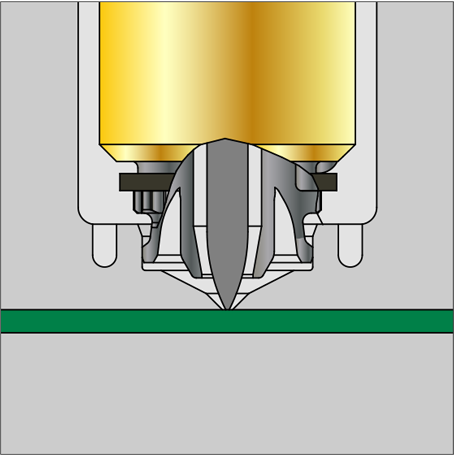

TF 32-1GLT TF 32-1GLT
Nozzle for metal-filled materials and high-appearance parts. Special tip ensures uniform flow, ideal for cosmetics and packaging.
 TF 32-1GLT TF 32-1GLT 10 32 42 16
Legend
Maenner-drawing-Valve-Gate-Nozzle

TF 32

Thermal Gate Nozzles

  • On Sprue Injection
Image Name Description Product
Catalog		 3D Data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

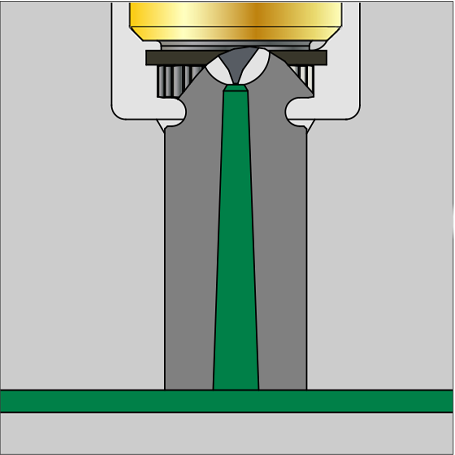

TF 32-1DSLA TF 32-1DSLA

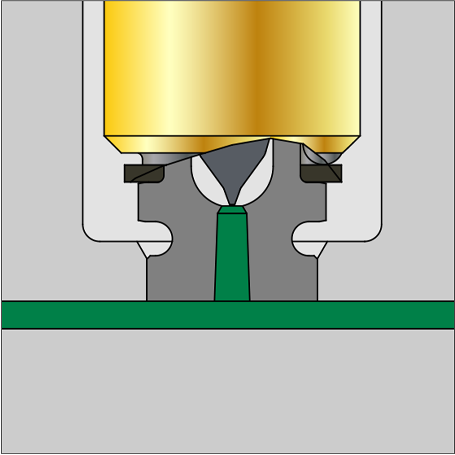

The nozzle suits sprue or cavity molding, even with abrasive materials, and features a reinforced tip for larger sprues, leaving a circular mark on the part.
 TF 32-1DSLA TF 32-1DSLA 10 32 42 16
TF 32-1DSLU TF 32-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF 32-1DSLU TF 32-1DSLU 10 32 42 16

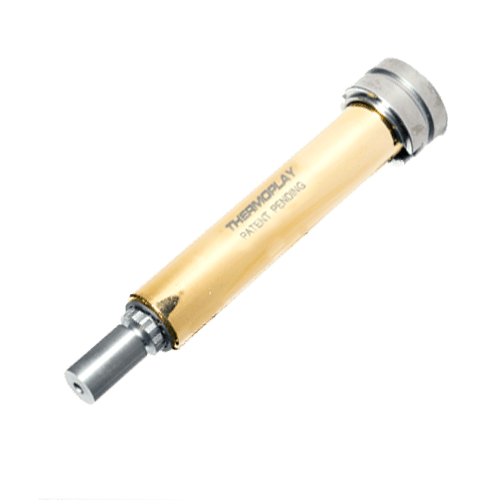

TF 32-2 TF 32-2

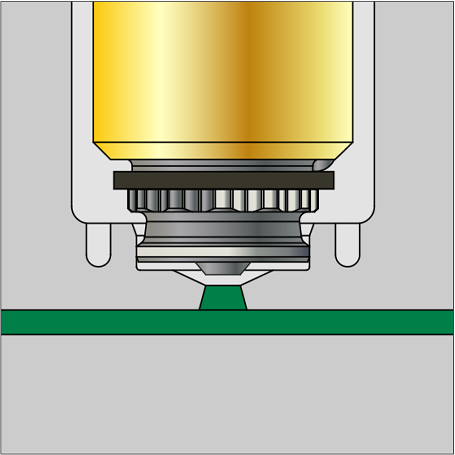

The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF 32-2 TF 32-2 10 32 42 16

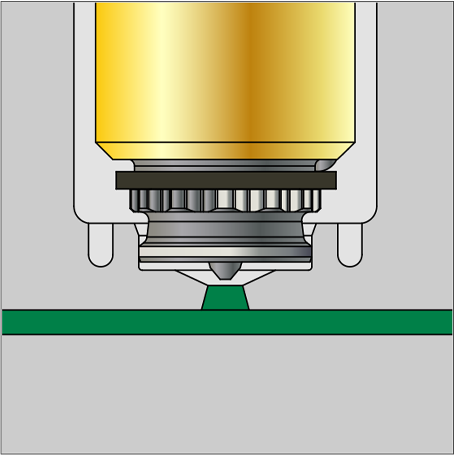

TF 32-2P TF 32-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF 32-2P TF 32-2P 10 32 42 16
TF 32-2DSTD TF 32-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF 32-2DSTD TF 32-2DSTD 10 32 42 6
TF 32-2DSPR TF 32-2DSPR

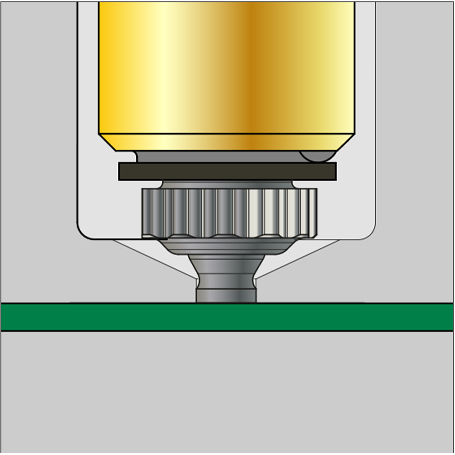

The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF 32-2DSPR TF 32-2DSPR 10 32 42 6

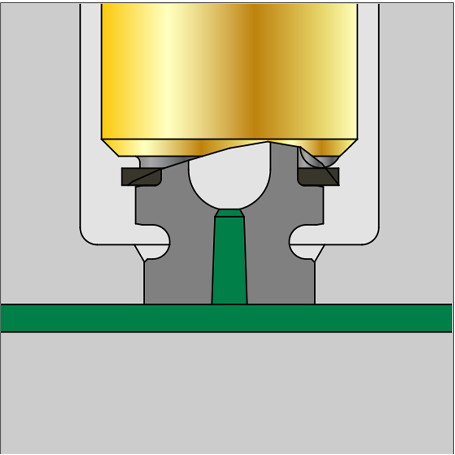

TF 32-2DSLA TF 32-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF 32-2DSLA TF 32-2DSLA 10 32 42 16

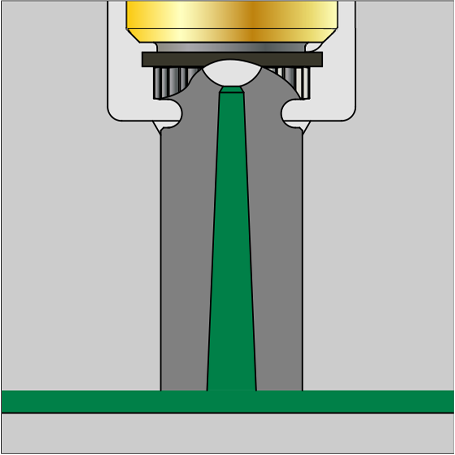

TF 32-2DSLU TF 32-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.
 TF 32-2DSLU TF 32-2DSLU 10 32 42 16
Legend
Maenner-drawing-Valve-Gate-Nozzle

TF 32

Valve Gate Nozzles

  • Valve Gate Injection



Image Name Description Product
Catalog		 3D Data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 32-3 TF 32-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 TF 32-3 TF 32-3 10 32 42 16

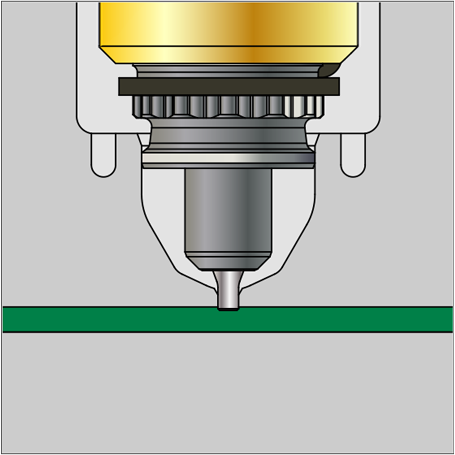

TF 32-3B TF 32-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 TF 32-3B TF 32-3B 10 32 42 16
TF 32-3D TF 32-3D

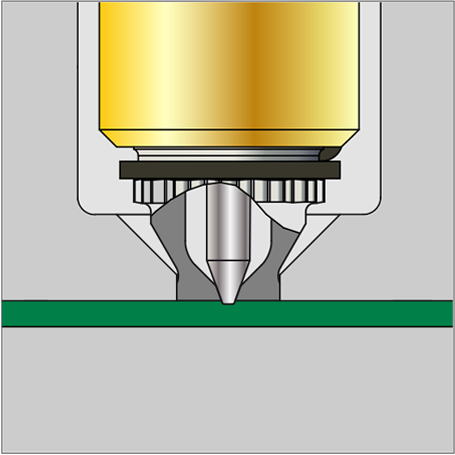

Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 TF 32-3D TF 32-3D 10 32 42 8.5
TF 32-3DSLA TF 32-3DSLA

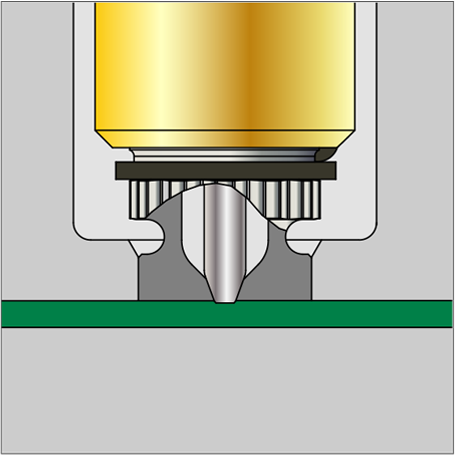

Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 TF 32-3DSLA TF 32-3DSLA 10 32 42 16
TF 32-3DSLU TF 32-3DSLU

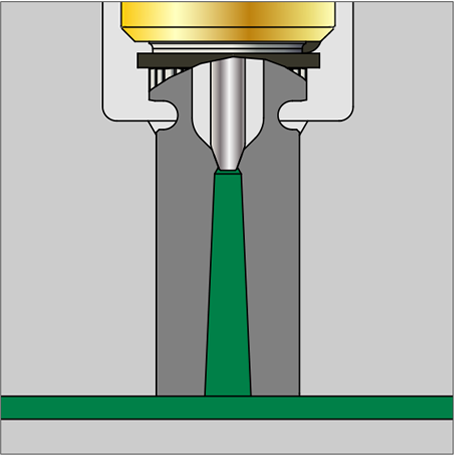

Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 TF 32-3DSLU TF 32-3DSLU 10 32 42 16
Legend
Maenner-drawing-Valve-Gate-Nozzle

TF 46

Thermal Gate Nozzles

  • Direct Injection
Image Name Description Product
Catalog		 3D Data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm

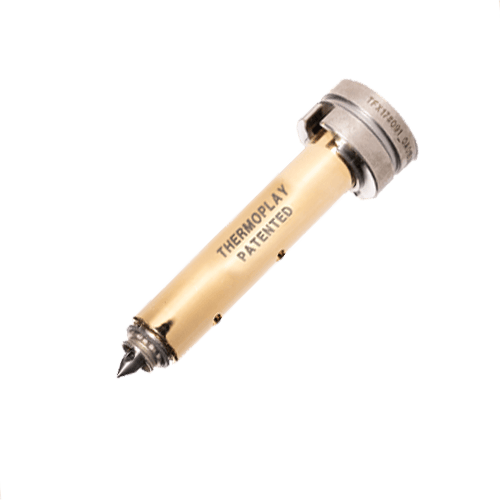

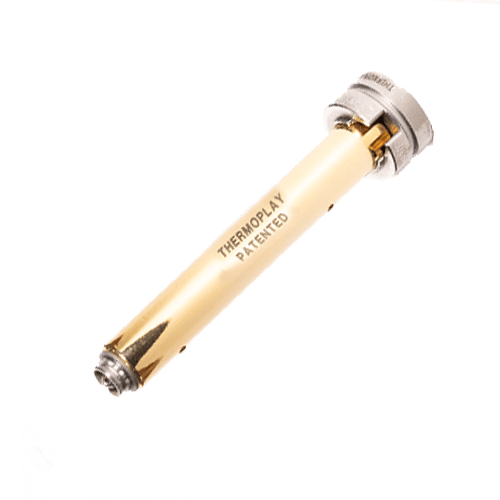

TF 46-1 TF 46-1

Nozzle for good vestige, suitable for all polymers, also abrasive fillers.
 TF 46-1 TF 46-1 15 46 62 25
TF 46-1D TF 46-1D
Nozzle for good gate appearance, suitable for abrasive fillers. Die can be machined for sealing; leaves circular witness mark.
 TF 46-1D TF 46-1D 15 46 62 16
Legend
Maenner-drawing-Valve-Gate-Nozzle

TF 46

Thermal Gate Nozzles

  • On Sprue Injection
Image Name Description Product
Catalog		 3D Data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 46-1DSLA TF 46-1DSLA
The nozzle suits sprue or cavity molding, even with abrasive materials, and features a reinforced tip for larger sprues, leaving a circular mark on the part.
 TF 46-1DSLA TF 46-1DSLA 15 46 62 20
TF 46-1DSLU TF 46-1DSLU
Nozzle for sprues or direct gating, suitable for abrasive fillers. Strengthened, longer tip for larger sprues and mould profile shaping; die seal machined from cavity side. Leaves circular witness mark.
 TF 46-1DSLU TF 46-1DSLU 15 46 62 20
TF 46-2 TF 46-2
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF 46-2 TF 46-2 15 46 62 25
TF 46-2MD TF 46-2MD
The nozzle is suitable for sprue or cavity molding, leaving a visible injection mark. It works with all polymers, including abrasive fillers, but not with drool-prone materials.
 TF 46-2MD TF 46-2MD 15 46 62 25
TF 46-2P TF 46-2P
The nozzle can inject onto the sprue or directly into the cavity, leaving a visible injection mark. It is well suited for drool-prone materials and also compatible with abrasive fillers.
 TF 46-2P TF 46-2P 15 46 62 25
TF 46-2DSTD TF 46-2DSTD
The nozzle is suitable for parts where gate vestige is not critical. It can be sealed from the cavity side, leaving a circular tip mark on the part, and is recommended only for high-fluidity materials.
 TF 46-2DSTD TF 46-2DSTD 15 46 62 10
TF 46-2DSPR TF 46-2DSPR
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side but is not suitable for drool-prone materials.
 TF 46-2DSPR TF 46-2DSPR 15 46 62 10
TF 46-2DSLA TF 46-2DSLA
The nozzle is suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. It can be sealed from the cavity side, and compared to the TF-2DSPR, has a reinforced tip for larger sprues. Not suitable for drool-prone materials.
 TF 46-2DSLA TF 46-2DSLA 15 46 62 20
TF 46-2DSLU TF 46-2DSLU
Nozzle suitable for sprue or cavity molding, leaving a small sprue and a circular tip mark on the part. Compared to the TF-2DSPR, the tip is reinforced for larger sprues, and compared to the TF-2DSLA, it is longer and can be shaped to match the part’s profile. Not suitable for drool-prone materials.



 TF 46-2DSLU TF 46-2DSLU 15 46 62 20
Legend
Maenner-drawing-Valve-Gate-Nozzle

TF 46

Valve Gate Nozzles

  • Valve Gate Injection



Image Name Description Product
Catalog		 3D Data Flow Bore
Ø mm		 Cut out
Ø mm		 Support Ring
Ø mm		 Sealing
Ø mm
TF 46-3 TF 46-3
The valve-gate nozzle is suitable for molding parts requiring optimal gate aesthetics and can also handle reinforced plastics with abrasive fillers.
 TF 46-3 TF 46-3 15 46 62 25
TF 46-3B TF 46-3B
Nozzle with prolonged tip for restricted areas, ideal for thin-walled, fast-cycle parts with good gate aesthetics. Suitable for abrasive-filled materials, but not for polycarbonate or similar.
 TF 46-3B TF 46-3B 15 46 62 25
TF 46-3D TF 46-3D
Valve-gate nozzle for optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, leaving a circular tip mark.
 TF 46-3D TF 46-3D 15 46 62 16
TF 46-3DSLA TF 46-3DSLA
Valve-gate nozzle for parts requiring optimal gate aesthetics and abrasive-filled materials; seat machinable from cavity side, reinforced tip for larger injection points, leaving a visible circular mark.
 TF 46-3DSLA TF 46-3DSLA 15 46 62 20
TF 46-3DSLU TF 46-3DSLU
Valve-gate nozzle for optimal gate aesthetics and abrasive materials; cavity-side machinable seat, reinforced tip for larger or shaped sprues, leaving a circular mark.
 TF 46-3DSLU TF 46-3DSLU 15 46 62 20
