Improved process window
Greater flexibility in molding conditions with consistent performance.
-
-
Increased flow channels
Optimized melt flow reduces injection pressure loss and improves efficiency. -
Special patented heater
Ensures a uniform thermal profile for stable production while delivering significant energy savings. -
Tips in special steel
Provide optimal thermal conduction and high wear resistance, with a wide range of types suitable for the injection of the most commonly used polymers.Download Material Tables
-
Different lengths available
Adaptable to a variety of applications and requirements. -
Accurate temperature control
Thermocouple positioned close to the tip zone for precise temperature reading. -
Easy maintenance
Heater and thermocouple can be replaced directly on the injection machine, minimizing downtime. -
Double sealing system
Reliable sealing on both the nozzle tip and head ensures safe and stable operation.
.png?width=1280&height=400&name=Sealing%20(1).png)
1
2
3
4
5
6
7
8
9
Filter
Nozzle Type
Sliding Nozzle
null
Gate
Thermal Gate
null
Name
Flow Bore (mm)
Cut out (mm)
Sealing (mm)
Support Ring (mm)

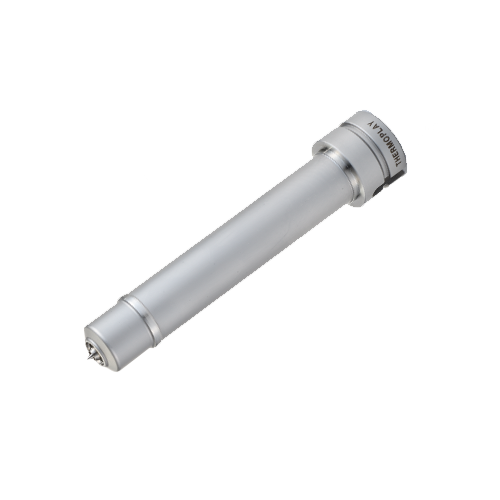

TD 18
Thermal Gate Nozzles
- Direct Injection
- On Sprue Injection
- Valve Gate Injection
| Image | Name | Description | Product Catalog |

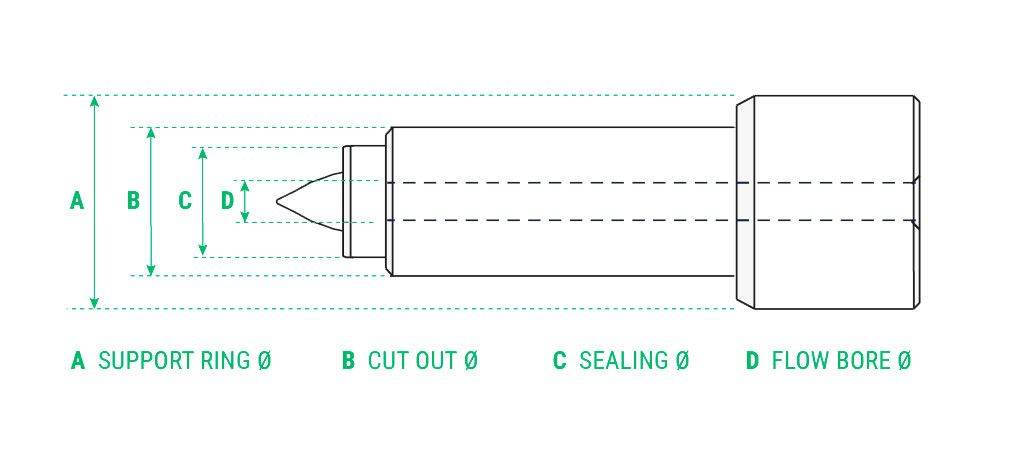

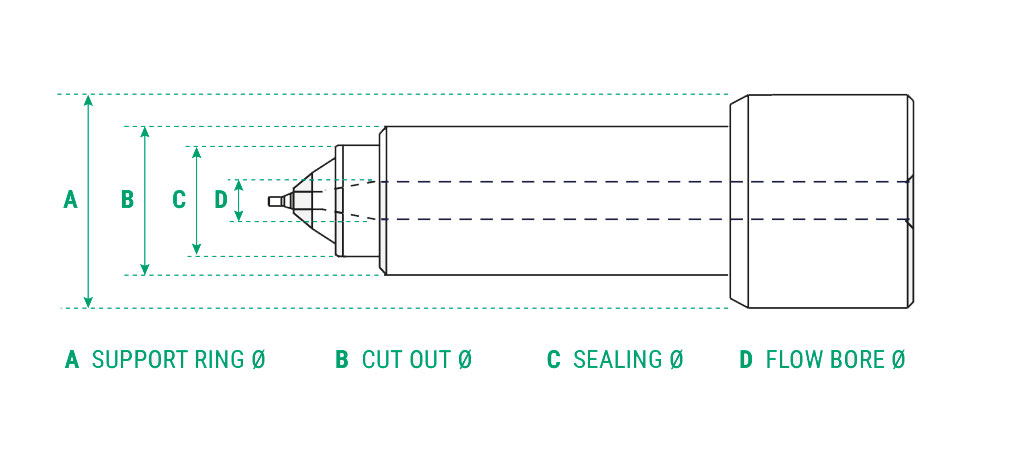

3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|

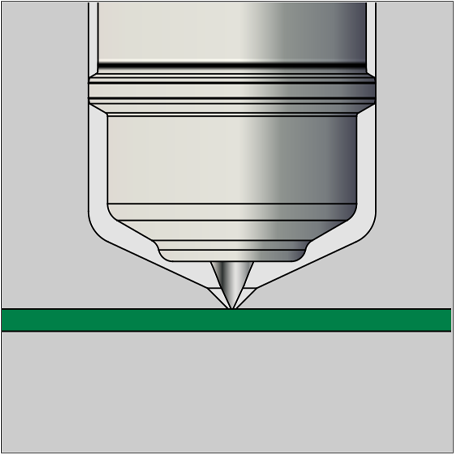

TD 18-1 | Nozzle for critical vestige, works with filled/abrasive materials; seals on body, less precise seat needed. |
TD 18-1 | TD 18-1 | 4 | 18 | 23.5 | 18 |
|
|
TD 18-1MD | |||||||
|

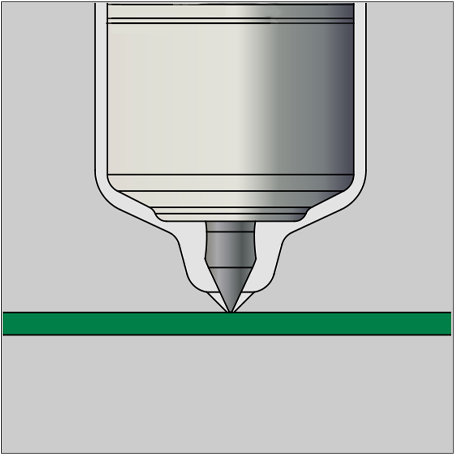

TD 18-1B | Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed. |
TD 18-1B | TD 18-1B | 4 | 18 | 23.5 | 18 |

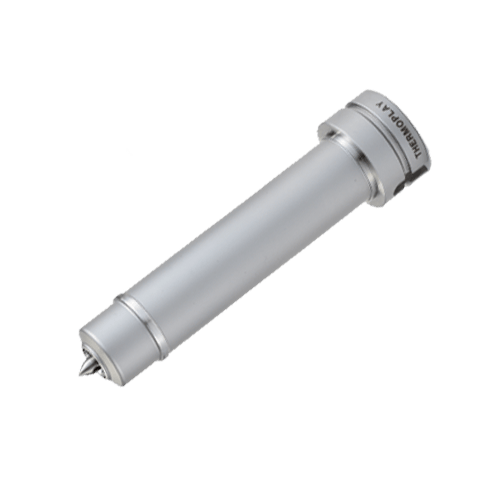

TD 22
Thermal Gate Nozzles
- Direct Injection
- On Sprue Injection
- Valve Gate Injection
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|
|
TD 22-1 | Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series. |
TD 22-1 | TD 22-1 | 5 | 22 | 29 | 22 |
|
|
TD 22-1MD | Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series. |
TD 22-1MD | TD 22-1MD | 5 | 22 | 29 | 22 |
|
|
TD 22-1B | Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed. |
TD 22-1B | TD 22-1B | 5 | 22 | 29 | 22 |

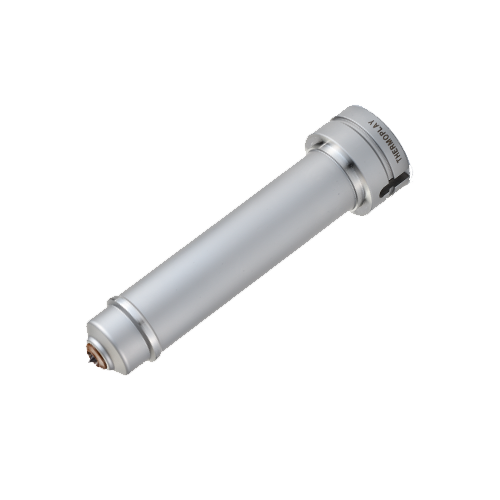

TD 30
Thermal Gate Nozzles
- Direct Injection
- On Sprue Injection
- Valve Gate Injection
| Image | Name | Description | Product Catalog |
3D data | Flow Bore Ø mm |
Cut out Ø mm |
Support Ring Ø mm |
Sealing Ø mm |
|---|---|---|---|---|---|---|---|---|
|
|
TD 30-1 | Nozzle for parts where injection vestige matters, suitable for filled and abrasive materials; TD nozzles have an external-body seal, requiring less precise seat machining than TF series. |
TD 30-1 | TD 30-1 | 7 | 30 | 39 | 30 |
|
|
TD 30-1B | Nozzle for good gate appearance, thin fast-cycle parts, limited space. Handles abrasive fillers, high-fluidity materials; not for quick color changes. Seals on body, less precise seat needed. |
TD 30-1B | TD 30-1B | 7 | 30 | 39 | 30 |
-
Innovation, precision, and reliability
Our hot runner systems are engineered to optimize every stage of the injection molding process, ensuring high performance and consistent quality across all applications.
For detailed technical information and product specifications, please refer to the dedicated section of the technical catalog.
-
Webcreator Configurator
Design your hot runner system with precision, speed, and complete flexibility—directly online. Webcreator is an intuitive, web-based application that allows you to configure Thermoplay hot runner systems using standard nozzles and accessories, all tailored to your specific needs.
Easily define nozzle spacing and adapt your configuration to polymer processing conditions. The system automatically adjusts key parameters such as manifold channel diameters, nozzle descent holes, and injection bushing dimensions to ensure optimal performance.
Once your configuration is complete, high-quality 2D drawings and 3D CAD models are generated in your preferred format and delivered straight to your inbox in a convenient zipped file—complete with configuration sheets and part lists in PDF format.
Need to make changes? No problem. You can modify your configurations at any time and quickly generate updated designs, keeping your workflow smooth and efficient.
Start creating your custom hot runner system today—faster, smarter, and entirely online.
