Unsere Ingenieure unterstützen Sie dabei, die optimale Düse für Ihre Anwendung auszuwählen – einschließlich der wartungsfreundlichen XP-Ausführung und der stets präzisen Heat-Pipe-Option.
Sowohl unsere offenen als auch unsere Nadelverschluss-Heißkanalsysteme werden exakt nach Ihren Anforderungen konfiguriert und durch das erstklassige Engineering-Team von Synventive unterstützt.

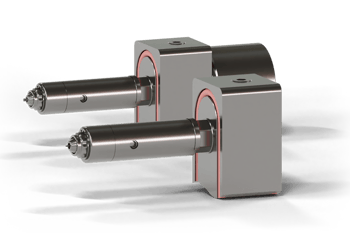

Eingeschraubte Düsen

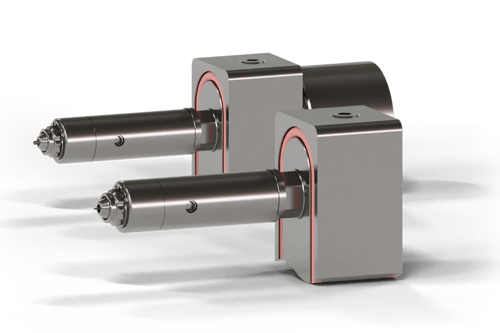

Synventive ist Experte für eingeschraubte Düsen. Sie bieten maximalen Schutz vor Leckagen bei Hochdruckprozessen sowie hohe Sicherheit und Wartungsfreundlichkeit.
Gleitende Düsen
Wenn Ihre Anwendung Düsen mit kürzeren Düsenlängen und geringeren Aufbauhöhen erfordert, lässt sich dies problemlos realisieren – ohne Bedenken hinsichtlich einer Durchbiegung durch einseitige Belastung.

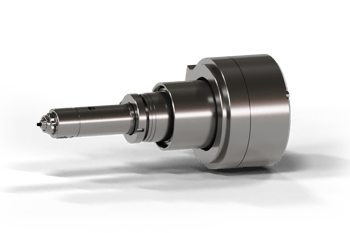

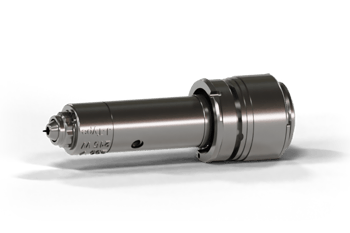

Einzel-Nadelverschlussdüsen
Für Anwendungen mit kurzen Zykluszeiten, die eine präzise Steuerung erfordern, bieten Einzel-Nadelverschlussdüsen die notwendige Durchflusskontrolle.
Einzel-Heißkanaldüsen
Hochwertiges Spritzgießen erfordert Präzisionskomponenten in jeder Phase des Schmelzeflusses. Die Einzel-Heißkanaldüsen von Synventive sorgen von Anfang an für einen optimalen Schmelzefluss.

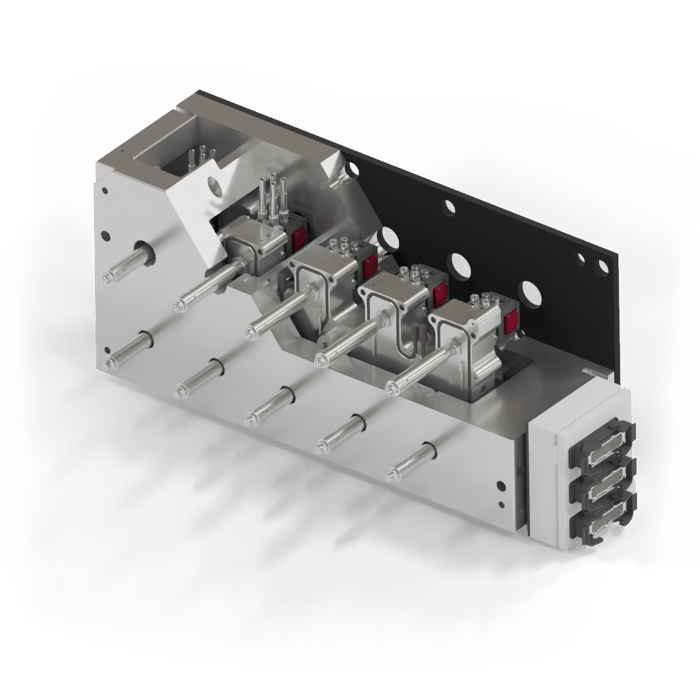

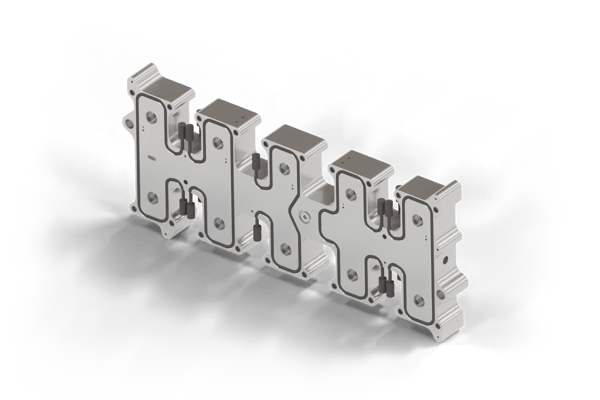

Synventive Verteiler sind in jeder kundenspezifischen Form erhältlich und decken damit alle denkbaren Heißkanal-Anspritzkonfigurationen und Werkzeugkonzepte ab.

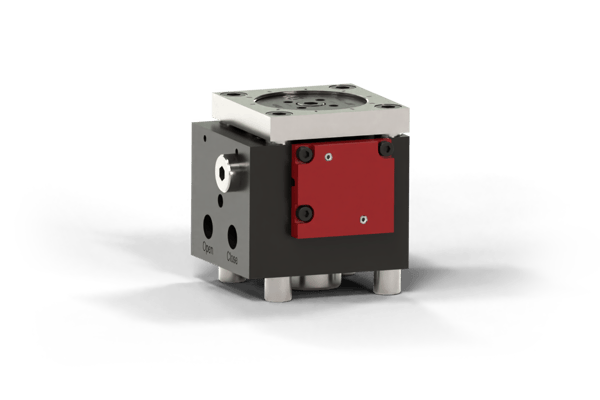

Hydraulische, elektrische und pneumatische Aktuatoren bieten dem Spritzgießer jeweils spezifische Vorteile. Gemeinsam mit Ihnen ermitteln wir die optimale Lösung für Ihren Anwendungsprozess. Synventive unterstützt Sie bereits vor der Angebotserstellung für Ihr Heißkanalsystem bei der Planung Ihres Spritzgießprozesses und führt Sie so zur passenden Aktuator- und Nadelsteuerungstechnologie für Ihre individuellen Anforderungen. Wir liefern sowohl Einzelaktuatoren als auch Aktuatorplatten in hydraulischer und pneumatischer Ausführung.
Aktuatoren-Katalog herunterladen
Hydraulischer Nadelverschluss
Bietet eine unabhängige Anschnittsteuerung für hydraulische Heißkanalsysteme. Hydraulische Aktuatoren können die hohen Schließkräfte erzeugen, die für das Spritzgießen größerer Bauteile erforderlich sind. Ideal für das Kaskaden- oder sequenzielle Spritzgießen mit hohen Anforderungen an Oberflächenqualität und Maßhaltigkeit.
Pneumatischer Nadelverschluss
Pneumatische Aktuatoren zeichnen sich durch ihre schnelle Reaktionszeit aus. Dies ist insbesondere bei kleineren Schussgewichten wichtig, bei denen kurze Einspritzzeiten erforderlich sind. Sie sind kompakt, leicht und wartungsfreundlich.

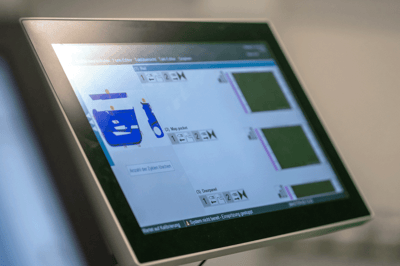

VMI überwacht aus der Ferne die Öffnungs- und Schließgeschwindigkeit Ihrer Verschlussnadeln.
Die activeGate®-Technologien für das sequenzielle Spritzgießen sind darauf ausgelegt, eine perfekte Oberflächenqualität, Maßhaltigkeit und Reproduzierbarkeit der Spritzgussteile zu ermöglichen: Synflow® steuert die Öffnungsgeschwindigkeit der Verschlussnadel.
Mehr über die Synventive Durchflusskontrolltechnologie erfahren

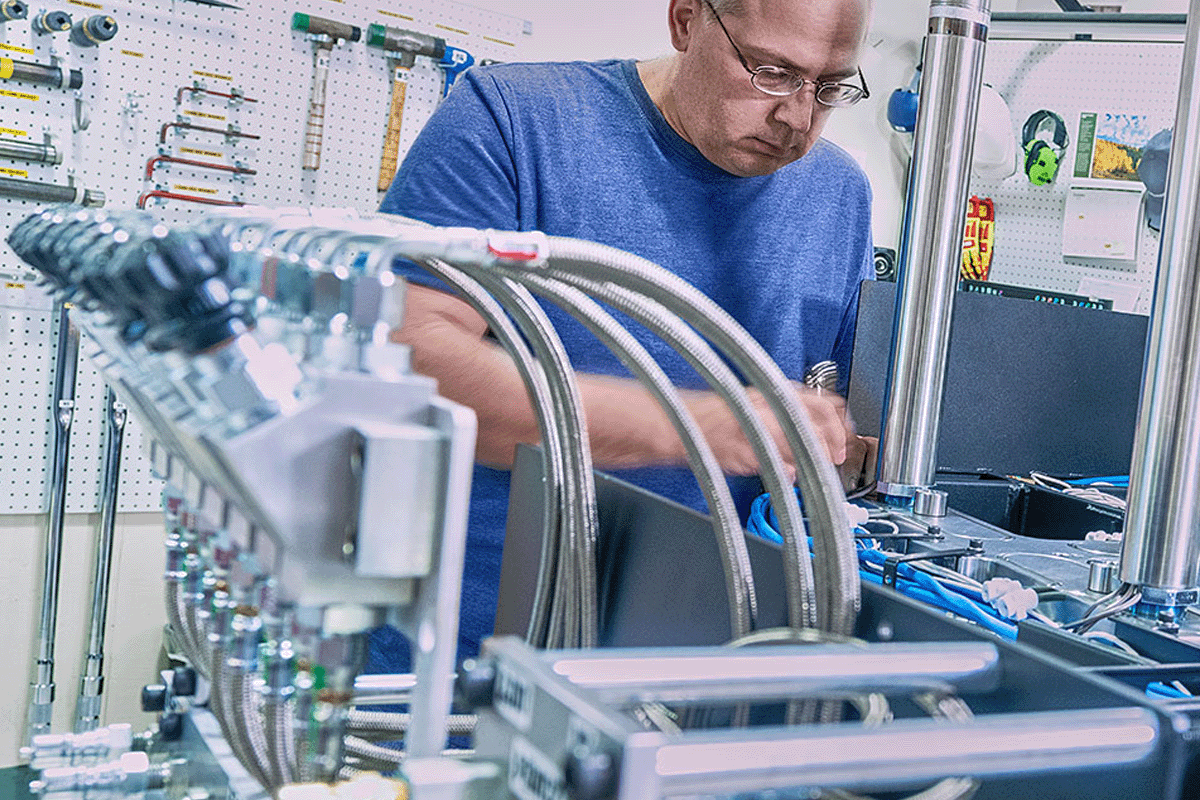

Synventive macht es seinen Kunden leicht, ihr Heißkanalsystem zu installieren und in Betrieb zu nehmen. Unsere Servicetechniker stehen Ihnen jederzeit unterstützend zur Seite. Detaillierte Anleitungen finden Sie außerdem in unseren Online-Handbüchern.

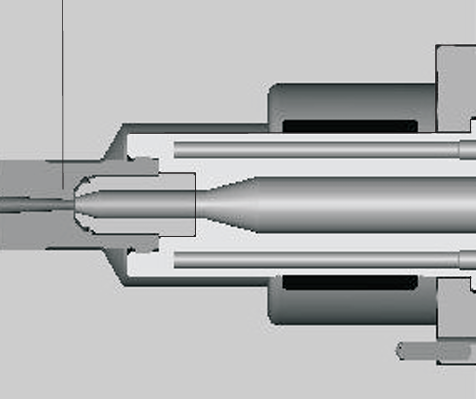

During the closing movement, the valve pin is first precentered by an angled guide area and then positioned perfectly in the gate orifice by means of a cylindrical guide. Nozzle and valve pin are designed to provide maximum performance and extreme durability.
| Bild | Name | Beschreibung | Produktkatalog | 3D-Daten | Schmelzekanal Ø mm |
Aussparung Ø mm |
Stützring Ø mm |
Abdichtung Ø mm |
|---|---|---|---|---|---|---|---|---|
|

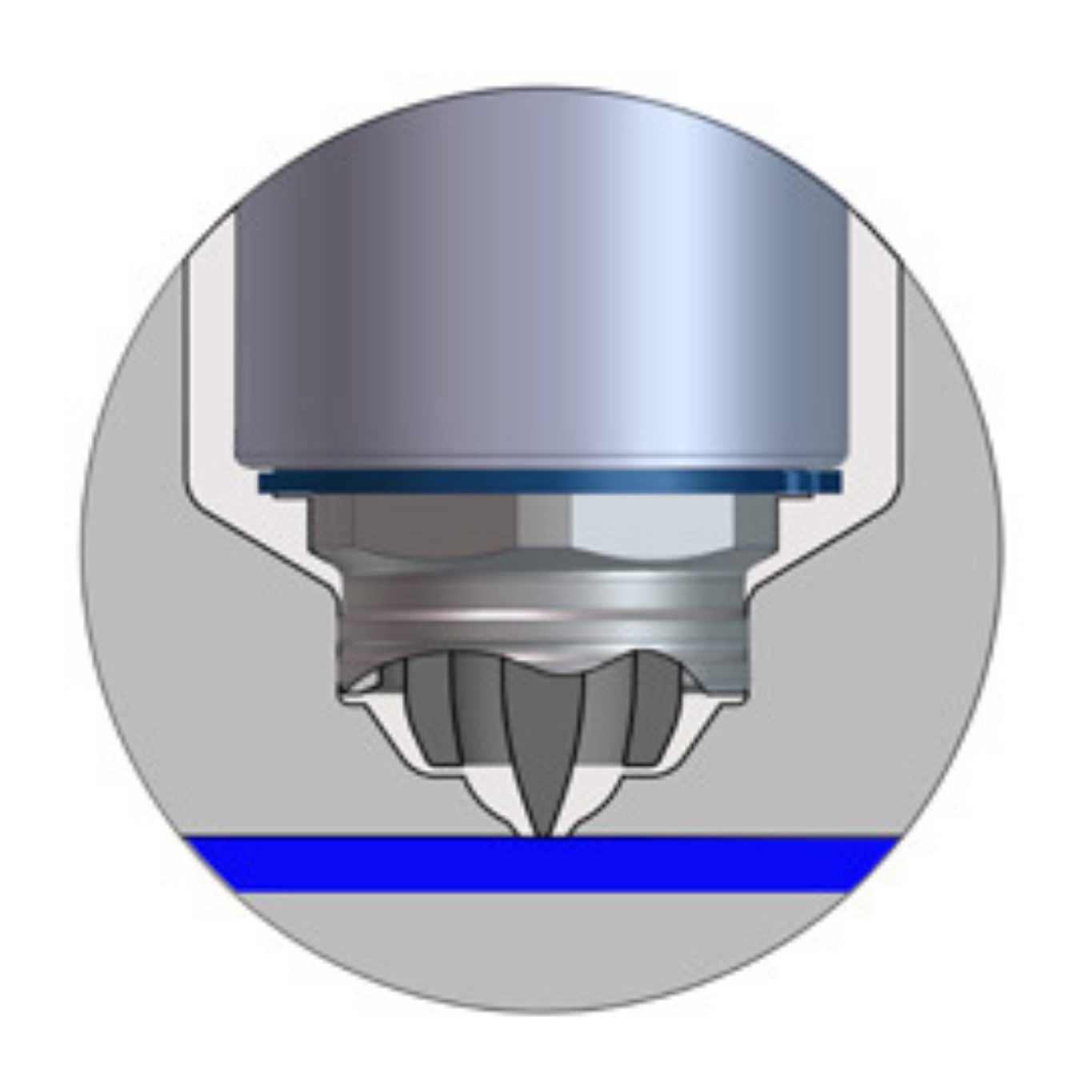

06E-03 (TG) | 06E Thermal Gate Nozzle | 06E-03 (TG) | 06E-03 (TG) | 6 | 20 | NA | 9/6 |
.png)
|

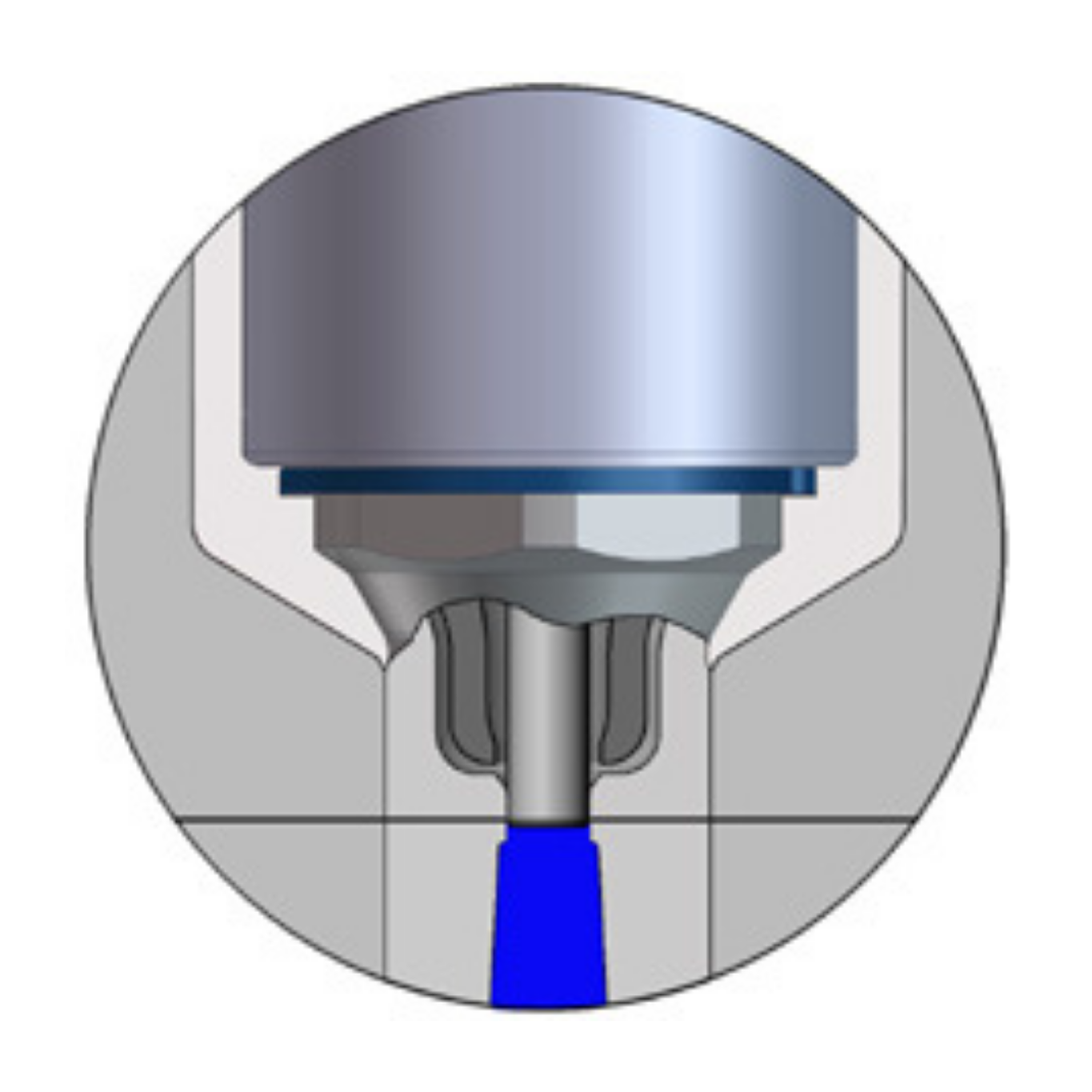

06E-03 (VG) | 06E Valve Gate Nozzle | 06E-03 (VG) | 06E-03 (VG) | 6 | 20 | NA | 9/6 |
|
|
06S-03 | 06 Single Nozzle (Sprue Bushing) | 06S-03 | 06S-03 | 6 | 20 | 40 | 9/6 |
| Bild | Name | Beschreibung | Produktkatalog | 3D-Daten | Schmelzekanal Ø mm |
Aussparung Ø mm |
Stützring Ø mm |
Abdichtung Ø mm |
|---|---|---|---|---|---|---|---|---|
|
|
09E-03 (TG) | 09E Thermal Gate Nozzle | 09E-03 (TG) | 09E-03 (TG) | 9 | 27 | NA | 14/10 |
|
|
09EX12-03 (TG) | 09EX12 Thermal Gate Nozzle | 09EX12-03 (TG) | 09EX12-03 (TG) | 09 to 12 | 27/35 | NA | 14/10 |
|
|
09E-03 (VG) | 09E Valve Gate Nozzle | 09E-03 (VG) | 09E-03 (VG) | 9 | 27 | NA | 14/10 |
|
|
09EX12-03 (VG) | 09EX12 Valve Gate Nozzle | 09EX12-03 (VG) | 09EX12-03 (VG) | 09 to 12 | 27/35 | NA | 14/10 |
|
|
09S-03 | 09 Single Nozzle (Sprue Bushing) | 09S-03 | 09S-03 | 9 | 27 | 40 | 14/10 |
|
|
09SVP-03 | 09 Single Nozzle Pneumatic | 09SVP-03 | 09SVP-03 | 9 | 27 | 80 | 14/10 |
| Bild | Name | Beschreibung | Produktkatalog | 3D-Daten | Schmelzekanal Ø mm |
Aussparung Ø mm |
Stützring Ø mm |
Abdichtung Ø mm |
|---|---|---|---|---|---|---|---|---|
|
|
12E-06 (TG) | 12E Thermal Gate Nozzle | 12E-06 (TG) | 12E-06 (TG) | 12 | 35 | NA | 20/16 |
|
|
12EX16-03 (TG) | 12EX16 Thermal Gate Nozzle | 12EX16-03 (TG) | 12EX16-03 (TG) | 12 to 16 | 35/45 | NA | 20/16 |
|
|
12EZ-02 (TG) | 12EZ Thermal Gate Nozzle | 12EZ-02 (TG) | 12 | 40 | NA | 20/16 | |
|
|
12EZ-02 (VG) | 12EZ Valve Gate Nozzle | 12EZ-02 (VG) | 12 | 40 | NA | 20/16 | |
|
|
12EX16-03 (VG) | 12EX16 Valve Gate Nozzle | 12EX16-03 (VG) | 12EX16-03 (VG) | 12 to 16 | 35/45 | NA | 20/16 |
|
|
12E-06 (VG) | 12E Valve Gate Nozzle | 12E-06 (VG) | 12E-06 (VG) | 12 | 35 | NA | 20/16 |
|
|
12S-06 | 12 Single Nozzle (Sprue Bushing) | 12S-06 | 12S-06 | 12 | 35 | 52 | 20/16 |
|
|
12SZ-02 | 12EZ Single Nozzle (Sprue Bushing) | 12 | 40 | NA | 20/16 | ||
|
|
12SVP-06 | 12 Single Nozzle Valve Gate Pneumatic | 12SVP-06 | 12SVP-06 | 12 | 35 | 110 | 20/16 |
|
|
12SVH-06 | 12 Single Nozzle Valve Gate Hydraulic | 12SVH-06 | 12SVH-06 | 12 | 35 | 135.5 | 20/16 |
| Bild | Name | Beschreibung | Produktkatalog | 3D-Daten | Schmelzekanal Ø mm |
Aussparung Ø mm |
Stützring Ø mm |
Abdichtung Ø mm |
|---|---|---|---|---|---|---|---|---|
|
|
16E-06 (TG) | 16E Thermal Gate Nozzle | 16E-06 (TG) | 16E-06 (TG) | 16 | 45 | NA | 22/20 |
|
|
16EX22-03 (TG) | 16EX22 Thermal Gate Nozzle | 16EX22-03 (TG) | 16EX22-03 (TG) | 16 to 22 | 45/55 | NA | 22/20 |
|
|
16EZ-02 (TG) | 16EZ Thermal Gate Nozzle | 16 | 50 | NA | 22/20 | ||
|
|
16EZ-02 (VG) | 16EZ Valve Gate Nozzle | 16 | 50 | NA | 22/20 | ||
|
|
16EX22-03 (VG) | 16EX22 Valve Gate Nozzle | 16EX22-03 (VG) | 16EX22-03 (VG) | 16 to 22 | 45/55 | NA | 22/20 |
|
|
16E-06 (VG) | 16E Valve Gate Nozzle | 16E-06 (VG) | 16E-06 (VG) | 16 | 45 | NA | 22/20 |
|
|
16S-06 | 16 Single Nozzle (Sprue Bushing) | 16S-06 | 16S-06 | 16 | 45 | 72 | 22/20 |
|
|
16SVP-06 | 16 Single Nozzle Valve Gate Pneumatic | 16SVP-06 | 16SVP-06 | 16 | 45 | 130 | 22/20 |
|
|
16SZ-02 | 16EZ Single Nozzle (Sprue Bushing) | 16 | 50 | NA | 22/20 | ||
|
|
16SVH-06 | 16 Single Nozzle Valve Gate Hydraulic | 16SVH-06 | 16SVH-06 | 16 | 45 | 153 | 22/20 |
| Bild | Name | Beschreibung | Produktkatalog | 3D-Daten | Schmelzekanal Ø mm |
Aussparung Ø mm |
Stützring Ø mm |
Abdichtung Ø mm |
|---|---|---|---|---|---|---|---|---|
|
|
22E-06 (TG) | 22E Thermal Gate Nozzle | 22E-06 (TG) | 22E-06 (TG) | 22 | 55 | NA | 28/22 |
|
|
22EZ-02 (TG) | 22EZ Thermal Gate Nozzle | 22 | 60 | NA | 28/22 | ||
|
|
22EZ-02 (VG) | 22EZ Valve Gate Nozzle | 22 | 60 | NA | 28/22 | ||
|
|
22E-06 (VG) | 22E Valve Gate Nozzle | 22E-06 (VG) | 22E-06 (VG) | 22 | 55 | NA | 28/22 |
|
|
22S-06 | 22 Single Nozzle (Sprue Bushing) | 22S-06 | 22S-06 | 22 | 55 | 72 | 28/22 |
|
|
22SZ-02 | 22EZ Single Nozzle (Sprue Bushing) | 22 | 60 | NA | 28/22 |
| Bild | Name | Beschreibung | Produktkatalog | 3D-Daten | Schmelzekanal Ø mm |
Aussparung Ø mm |
Stützring Ø mm |
Abdichtung Ø mm |
|---|---|---|---|---|---|---|---|---|
|
|
SR16 | Valve Gate Nozzle | SR16 | SR16 | 8-16 | 46/68 | 90 | 24/25.4 |
|
|
SR16 | Thermal Gate Nozzle | SR16 | SR16 | 8-16 | 46/68 | 90 | 24/25.4 |
|
|
SR20 | Valve Gate Nozzle | SR20 | SR20 | 8-20 | 50-70 | 114 | 26/25.4 |
|
|
SR20 | Thermal Gate Nozzle | SR20 | SR20 | 8-20 | 50-70 | 114 | 26/25.4 |
|
|
SR24 | Thermal Gate Nozzle | SR24 | SR24 | 13-25 | 65-76 | 114 | 32/31.75 |
|
|
SR24 | Valve Gate Nozzle | SR24 | SR24 | 13-25 | 65-76 | 114 | 32/31.75 |
|
|
T16 | Valve Gate Nozzle | T16 | T16 | 8-16 | 46-72 | NA | 24/25.4 |
|
|
T16 | Thermal Gate Nozzle | T16 | T16 | 8-16 | 46-72 | NA | 24/25.4 |
|
|
T20 | Valve Gate Nozzle | T20 | T20 | 8-20 | 50-70 | NA | 32/31.75 |
|
|
T20 | Thermal Gate Nozzle | T20 | T20 | 8-20 | 50-70 | NA | 32/31.75 |
|
|
T24 | Thermal Gate Nozzle | T24 | T24 | 10-25 | 57-93 | NA | 32/31.75 |
|
|
T24 | Valve Gate Nozzle | T24 | T24 | 10-25 | 57-93 | NA | 32/31.75 |
|
|
SB15 | Single Nozzle (Sprue Bushing) | SB15 | SB15 | 15 | 50/82 | 140 | 26/25.4 |
|
|
SB24 | Single Nozzle (Sprue Bushing) | SB24 | SB24 | 24 | 65-80 | 140 | 32/31.75 |
Konfigurieren Sie Ihr Heißkanalsystem einfach online und erhalten Sie Ihre 3D-Daten sofort. Wir prüfen Ihre Anwendung und beraten Sie, sobald kritische Werte erreicht werden!
